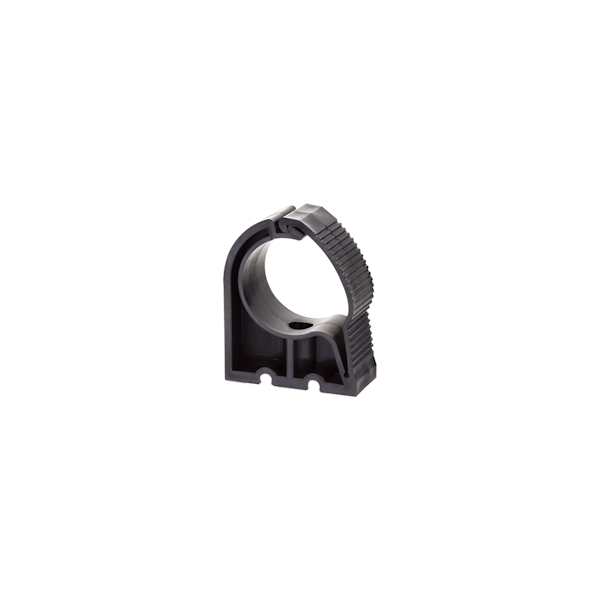

Fixture Clip
Theย Fixture Clip is a rugged and reliable mounting solution designed specifically for AIRpipe aluminum compressed air systems. Built to provide secure support and precise alignment, Fixture Clips are essential for maintaining system integrity across a wide range of installation environments. Fixture Clips are available in sizes ranging fromย 3/4″ to 4″ OD, making them suitable for the most commonly used pipe diameters in AIRpipe systems. Each clip features aย 3/8-16 threaded rod port, allowing for direct mounting to threaded rod assemblies and other support structures. This threaded connection simplifies installation and enhances stability in suspended or elevated configurations.
Fixture Clips are designed to work seamlessly withย Spacer Clipsย (such as #0027 and #0127) toย create a level planeย between different pipe sizes, ensuring smooth transitions and consistent alignment throughout the system.
Key Features:
- Secure pipe supportย for aluminum compressed air piping
- Size range:ย Compatible withย 3/4", 1", 1-1/2", 2", 2-1/2", 3", and 4" OD pipe
- 3/8-16 threaded rod portย for easy integration with rod-supported installations
- Non-flammableย construction for safe use in industrial and commercial environments
- Corrosion-resistantย and built for long-term durability
- Designed to work best with AIRpipe Spacer Clipsย for clean, professional transitions
- Quick and easy installationย with minimal tools required
Installation Versatility:
Fixture Clips support a wide range of mounting configurations, making them ideal for both new installations and system retrofits:
- Wall-mounted
- Beam-mounted
- Roof-mounted
- Channel, rod, or cable-supported
- Vertical or horizontal pipe runs
Whether you're installing a compact system or a large-scale network, Fixture Clips provide the strength, flexibility, and reliability needed to keep your piping system aligned and secure.
Additional information
| Weight | N/A |
|---|---|
| AIRpipe Certification | ASME, ASTM, CE, CRN, EN, ISO 14001, ISO 8573-1, ISO 9001, TS, TUV, UL |
| Color | Black |
| Connection | Threaded 3/8-16 |
| Features | Quick Installation |
| AIRpipe Outer Dimension | 100mm (4"), 20mm (3/4"), 25mm (1"), 40mm (1-1/2"), 50mm (2"), 63mm (2-1/2"), 80mm (3") |
| Material | Nylon, Plastic, Steel |
| Temperature | -4ยฐF to +176ยฐF |
