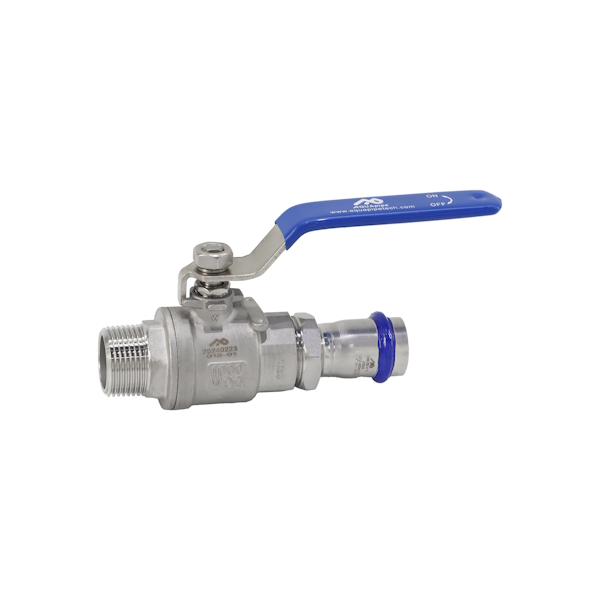

Locking Ball Valve with Male NPT and Press Fitting End
Locking Ball Valve with Male NPT and Press Fitting End
The stainless steel Locking Ball Valve with Male NPT and Press Fitting End is designed for secure flow control in industrial piping systems. Contractors use this valve to isolate sections of pipe or regulate fluid flow with a simple quarter-turn operation. One end features a male NPT thread for traditional threaded connections, while the other offers a press fitting for fast, flameless installation. The locking handle ensures tamper-resistant operation in critical systems. Ideal for use in water, air, steam, and chemical lines, this valve provides reliable shutoff and easy integration into AP Stainless systems without welding or soldering.
Key Features
- Reliable Connections: Simple press-fit design ensures secure, leak-free joints.
- Flameless Installation: No welding or solderingโreduces installation and repair time by over 50%.
- Versatile Conveyance: Seal and material options support nearly any liquid or gas.
- Dynamic System Response: Elastomeric connections absorb vibration, thermal expansion, and contraction.
- Corrosion Resistance: Chromium dioxide layer protects against rust and environmental wear.
- Fluid Safety: No risk of contamination to conveyed fluids.
- UV Stability: Resistant to UV exposure, ideal for outdoor installations.
Size Range
- Available Sizes: 1/2" to 2"
Material & Seals
- Material: 304 Stainless Steel
Applications
- Chilled/Cooled Water
- Hot Water
- Process Water
- Low Pressure Steam
- Compressed Air & Inert Gases
- Vacuum Systems
- Chemicals & Hydraulic Oils
- Acid & Caustic Solutions
- Wastewater
- Diesel Exhaust Fluid (DEF)
Certifications
- ASME B31.1, B31.3, B31.9
- ASTM A312
- ISO 9001, 14001, 45001
Warranty
- 10-Year Warranty on all AP Stainless fittings
Additional information
| Weight | N/A |
|---|---|
| Pipe to Male NPT Adapter | 16mm (1/2โณ) Pipe to (1/2โณ) Male NPT, 20mm (3/4") Pipe to (3/4") Male NPT, 25mm (1") Pipe to (1") Male NPT, 32mm (1 1/4โณ) Pipe to (1 1/4โณ) Male NPT, 40mm (1-1/2") Pipe to (1-1/2") Male NPT, 50mm (2") Pipe to (2") Male NPT |
| AP Stainless Certification | ASME, CE, EN, ISO 14001, ISO 45001, ISO 9001, TS, TUV, UL |
| Color | Blue, Silver Metallic |
| Connection | Press, Threaded |
| Features | High Flow |
| Material | Stainless Steel |
| Pressure | 188 PSI, 1mbar/0.03inhg (Full industrial vacuum), 200 PSI |
| Temperature | EPDM -4ยฐF to +248ยฐF |
