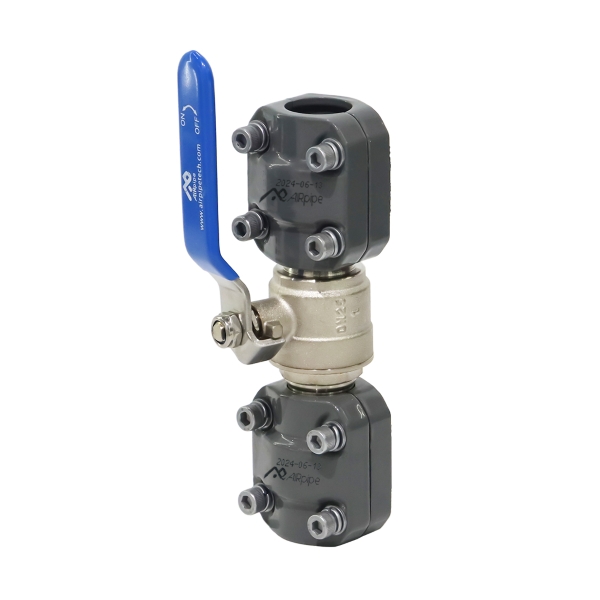

Quick Connect Valve
Quick Connect Valve
Designed to provide fast, secure shut-off and flow control in aluminum industrial piping systems. Ideal for compressed air, vacuum, and inert gas applications, this valve allows contractors to quickly isolate sections or connect/disconnect equipment without tools or downtime. Made from corrosion-resistant Aluminum & Nickel-plated Brass, it features metal clamshell union connectors and a grab or Lugged ring design for leak-free performance. Its full-volume flow and reusable construction make it perfect for dynamic industrial environments, offering flexibility, safety, and long-term reliability in both permanent and temporary installations.
Key Features
- Durable Construction: Made from Aluminum & Nickel-plated Brass, offering excellent resistance to corrosion, vibration, and thermal variation.
- Weather-Resistant: Performs reliably in outdoor and harsh industrial conditions.
- Metal Clamshell Connectors: Stronger and more durable than polymer alternatives.
- Advanced Ring Design:
- 20โ50mm: Grab ring with full surface contact, ensuring no shrinkage and leak-free performance.
- 63mm: Lugged ring for zero risk of disconnection.
- Leak-Free Guarantee: Engineered for superior sealing and longevity compared to traditional pipe systems.
- Installation: No welding, gluing, brazing, soldering, or thread cutting required.
- Quick Assembly: Supplied with two union connectors for fast, full-volume flow connection.
- Reusable & Dismantlable: Easily disassembled and reassembled for maintenance or system upgrades.
- Non-Flammable Materials: Safe for use in high-risk industrial zones.
- Nickel-plated brass
Available Sizes
- ยพโ to 2โ: Grab ring clamping style connection
- 2ยฝโ: Lugged ring with surface contact
Applications
- Compressed Air (dry, wet, lubricated)
- Vacuum Systems
- Inert Gases (Argon, Helium, Nitrogen, COโ mixes)
Certifications
- ASME B31.1, B31.3
- ASTM B241, EN755-8, GB/T4437.1-2000, JIS H4080
- ISO 9001, 14001, 8573-1
Warranty
- 10-Year Warranty on all AP Stainless fittings
The Quick Connect Valve is an essential component for contractors seeking a fast, durable, and leak-proof solution for controlling flow and enhancing system flexibility in industrial piping applications.
Additional information
| Weight | N/A |
|---|---|
| AIRpipe Outer Dimension | 20mm (3/4"), 25mm (1"), 40mm (1-1/2"), 50mm (2"), 63mm (2-1/2") |
| AIRpipe Certification | ASME, ASTM, CE, CRN, EN, ISO 14001, ISO 8573-1, ISO 9001, TS, TUV, UL |
| Color | Blue, Gray, Silver Metallic |
| Connection | Grab Ring Clamping Style, Lugged Ring Clamping Style |
| Features | High Flow, With Locking Ball Valve |
| Material | Aluminum, Nickel Plated Brass, Steel |
| Pressure | 188 PSI, 232 PSI, 300 PSI, 29.9 inHg (99% vacuum) |
| Temperature | -4ยฐF to +176ยฐF |
