Reducing Tee

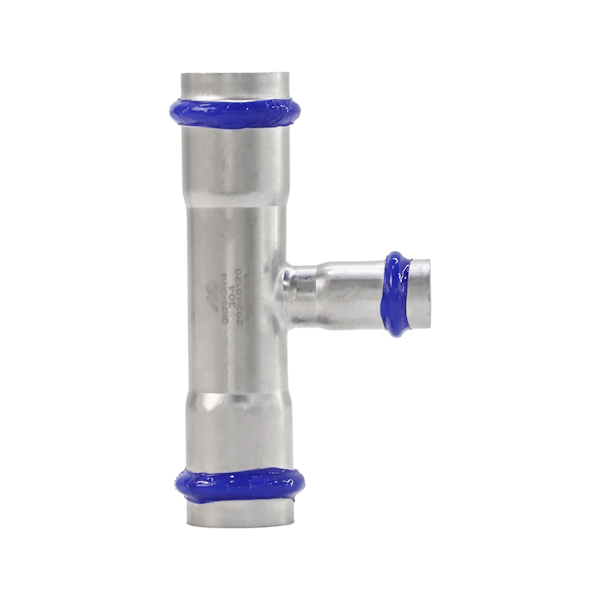

Stainless Steel Reducing Tee
The Reducing Tee is a stainless steel fitting designed to connect three pipesโtwo of the same size and one of a smaller diameterโallowing for a smooth transition in flow direction and volume. Ideal for contractors working on fluid or gas systems, this press-fit tee simplifies branching off a main line to a reduced-size outlet. Installation is fast and flameless: insert each pipe into the fitting and press to seal. Made from corrosion-resistant 304 stainless steel, itโs suitable for demanding environments and a wide range of applications including water, steam, air, and chemical systems.
Key Advantages
- Proven Technology: Simple and robust connection design ensures dependable system performance.
- Fast, Flameless Installation: AP Stainless technology reduces installation and repair time by over 50%, eliminating the need for welding or threading.
- Vibration Absorption: Elastomeric connections accommodate vibration, expansion, and contraction for enhanced system stability.
- Corrosion Resistance: Chromium dioxide layer provides excellent protection in corrosive environments.
- Fluid Integrity: No risk of contamination to conveyed fluids.
- UV Resistant: No degradation from UV exposure.
- Thermal Stability: Low expansion factor of 16 maintains dimensional consistency under temperature fluctuations.
Size & Connection Options
- Available Sizes: 1/2" to 10"

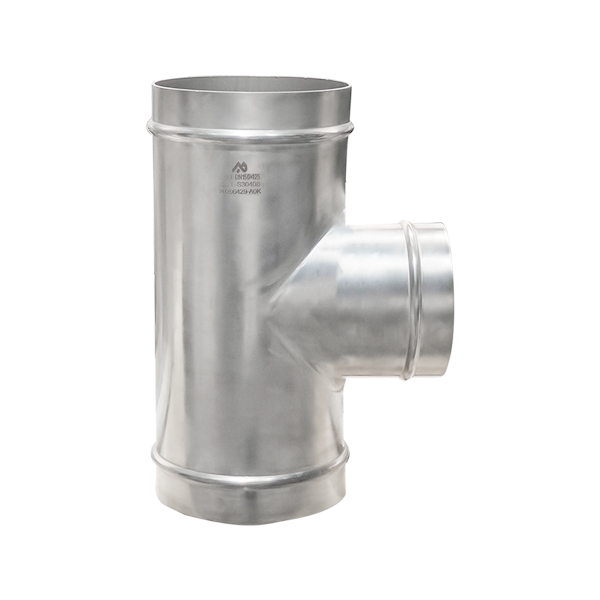

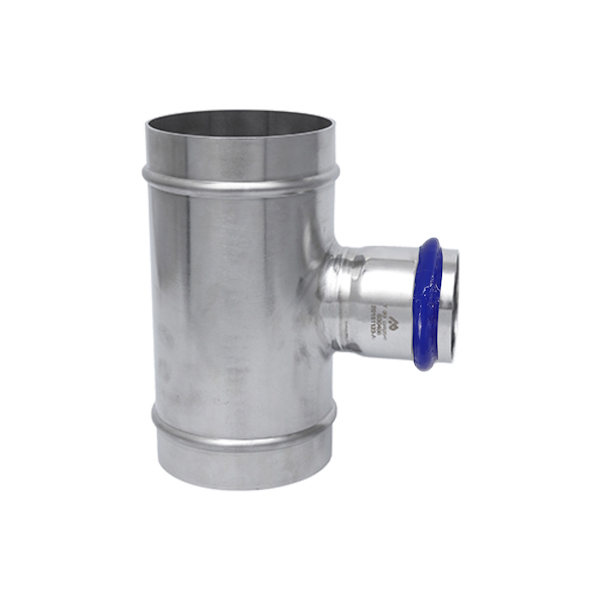

- Sizes 5"-10" include (2) Union Connectors
Material & Seals
- Material: 304 Stainless Steel
- Standard Seals: EPDM for general applications
- Optional Seals: FKM for high temperature and chemical resistance
Applications
- Compressed Air & Inert Gases: Especially in corrosive environments and food service operations
- Chemical Processing: Excellent corrosion resistance
- Cooling Systems: Coolers, cooling towers, and chillers (glycol)
- Process Water Systems
- Industrial Oils: Including cutting fluids
- Power Generation Facilities
Certifications
- ASME B31.1 โ Power Piping
- ASME B31.3 โ Process Piping
- ASME B31.9 โ Building Services Piping
- ASTM A312 โ Seamless and Welded Austenitic Stainless Steel Pipes
Warranty
All AP Stainless fittings are backed by a 10-year warranty, ensuring peace of mind and long-term value.
Additional information
| Weight | N/A |
|---|---|
| Press Reducing Tee | 1-1/2" to 1", 1-1/2" to 1-1/4", 1-1/2" to 1/2", 1-1/2" to 3/4", 1-1/4" to 1", 1-1/4" to 1/2", 1-1/4" to 3/4", 1" to 1/2", 1" to 3/4", 10" to 2-1/2", 10" to 3", 10" to 5", 10" to 6", 10" to 8", 2-1/2" to 1-1/2", 2-1/2" to 1-1/4", 2-1/2" to 1", 2-1/2" to 1/2", 2-1/2" to 2", 2-1/2" to 3/4", 2" to 1-1/2", 2" to 1-1/4", 2" to 1", 2" to 1/2", 2" to 3/4", 3" to 1-1/2", 3" to 1-1/4", 3" to 1", 3" to 1/2", 3" to 2-1/2", 3" to 2", 3" to 3/4", 3/4" to 1/2", 4" to 1-1/2", 4" to 1-1/4", 4" to 1", 4" to 2-1/2", 4" to 2", 4" to 3", 4" to 3/4", 5" to 2-1/2", 5" to 3", 5" to 4", 6" to 2-1/2", 6" to 3", 6" to 4", 6" to 5", 8" to 2-1/2", 8" to 3", 8" to 4", 8" to 5", 8" to 6", 10" to 4" |
| AP Stainless Certification | ASME, CE, EN, ISO 14001, ISO 45001, ISO 9001, TS, TUV, UL |
| Color | Blue, Silver Metallic |
| Connection | Press |
| Features | High Flow |
| Material | Stainless Steel |
| Pressure | 188 PSI, 1mbar/0.03inhg (Full industrial vacuum), 200 PSI |
| Temperature | EPDM -4ยฐF to +248ยฐF |
