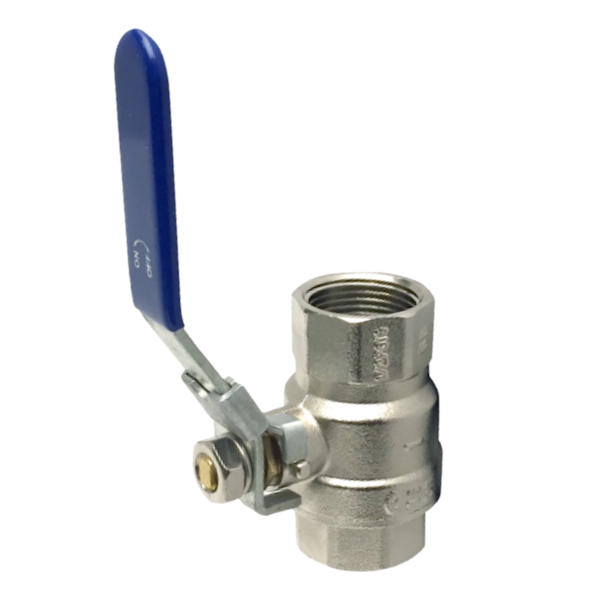

Threaded Ball Valve
Threaded Ball Valve
Designed for precise flow control and shut-off in aluminum industrial piping systems. It connects easily to threaded components and allows contractors to isolate sections or regulate compressed air, vacuum, or inert gas flow with a simple quarter-turn operation. Made from corrosion-resistant nickel-plated brass, this valve features full-volume flow and rugged construction, make it ideal for demanding environments. Reusable and easy to maintain, the threaded ball valve is a reliable solution for both permanent and flexible system setups.
Key Features
- Durable Construction: Made from nickel-plated brass, offering exceptional resistance to corrosion, vibration, and thermal variation.
- Weather-Resistant: Built to perform in outdoor and harsh industrial environments.
- Leak-Free Guarantee: Engineered for superior sealing and longevity compared to traditional pipe systems..
- Reusable & Dismantlable: Easily disassembled and reassembled for maintenance or system upgrades.
- Non-Flammable Materials: Safe for use in high-risk industrial zones.
- Quarter-Turn Operation: With Locking Handle providing simple and efficient control of flow with minimal effort.
Available Sizes
- Threaded Ends: Compatible with standard male/female NPT threads
Applications
- Compressed Air (dry, wet, lubricated)
- Vacuum Systems
- Inert Gases (Argon, Helium, Nitrogen, COโ mixes)
Certifications
- ASME B31.1, B31.3
- ASTM B241, EN755-8, GB/T4437.1-2000, JIS H4080
- ISO 9001, 14001, 8573-1
Warranty
- 10-Year Warranty
The Threaded Ball Valve is an essential component for contractors seeking a fast, durable, and leak-proof solution for controlling flow in industrial piping systemsโdelivering performance, safety, and long-term reliability.
Additional information
| Weight | N/A |
|---|---|
| Ball Valve | 1-1/2" Double Female NPT, 1" Double Female NPT, 1/2" Double Female NPT, 1/2" Double Male NPT, 1/2" Male NPT to 1/2" Female NPT, 2" Double Female NPT, 3/4" Double Female NPT, 3/4" Double Male NPT, 3/4" Male NPT to 3/4" Female NPT |
| AIRpipe Certification | ASME, ASTM, CE, CRN, EN, ISO 14001, ISO 8573-1, ISO 9001, TS, TUV, UL |
| Color | Blue, Silver Metallic |
| Connection | Threaded |
| Features | High Flow, Locking |
| Material | Nickel Plated Brass |
| Pressure | 188 PSI, 232 PSI, 300 PSI, 29.9 inHg (99% vacuum) |
| Temperature | -4ยฐF to +176ยฐF |
Use AIRpipe products in your next project design.
Download the drawing files in AutoCAD or STEP formats for your design software.
