Threaded Female ANSI Flange
Threaded Female ANSI Flange
A stainless steel fitting designed to connect pipes using a threaded joint and ANSI-standard flange assembly. Ideal for contractors, this flange provides a secure, leak-resistant connection without welding, making it perfect for systems requiring easy installation and maintenance. To use, thread the pipe into the flange and bolt it to a mating flange for a tight seal. Made from corrosion-resistant 304 stainless steel, it ensures durability and reliability in demanding environments. Suitable for water, steam, air, and chemical applications, this flange simplifies installation while meeting industry standards for performance and safety.
Key Features
- Proven Technology: Combines ANSI-standard flange dimensions with a strong female threaded connection for long-term reliability.
- Flameless & Clean Installation: No welding or open flame requiredโideal for fast, safe installations.
- Cost Efficiency: Reduces installation and repair time by over 50% compared to traditional welded flanges.
- Versatile Sealing Options: EPDM seals are standard; FKM seals available for high-temperature and chemical applications.
- Vibration Absorption: Elastomeric seals accommodate expansion, contraction, and system movement.
- Corrosion Resistance: Chromium dioxide layer protects against rust and environmental degradation.
- Fluid Safety: No risk of contamination to conveyed liquids or gases.
- UV Resistant: No degradation from sunlight exposure, suitable for indoor and outdoor installations.
Size Range
- Available in 1 ยฝ" to 6", covering a wide range of industrial applications.
Material
- Constructed from 304 Stainless Steel for superior strength and corrosion resistance.
Applications
- Chilled/Cooled Water
- Hot Water
- Process Water
- Low Pressure Steam
- Compressed Air & Inert Gases
- Vacuum Systems
- Chemicals
- Hydraulic Oils
- Acid & Caustic Solutions
- Wastewater
- Diesel Exhaust Fluid (DEF)
Certifications
- ASME B31.1, B31.3, B31.9
- ASTM A312
- ISO 9001, 14001, 45001
Warranty
- Backed by a 10-year warranty on all AP Stainless fittings for peace of mind and long-term performance.
Additional information
| Weight | N/A |
|---|---|
| ANSI Flange to Female NPT | 100mm (4") ANSI Flange to 1-1/2" Female NPT, 100mm (4") ANSI Flange to 2-1/2" Female NPT, 100mm (4") ANSI Flange to 2" Female NPT, 125mm (5" ) ANSI Flange to 3" Female NPT, 125mm (5") ANSI Flange to 1-1/2" Female NPT, 125mm (5") ANSI Flange to 2-1/2" Female NPT, 125mm (5") ANSI Flange to 2" Female NPT, 150mm (6") ANSI Flange to 1-1/2" Female NPT, 150mm (6") ANSI Flange to 2-1/2" Female NPT, 150mm (6") ANSI Flange to 2" Female NPT, 150mm (6") ANSI Flange to 3" Female NPT, 40mm (1-1/2") ANSI Flange to 1-1/2" Female NPT, 50mm (2") ANSI Flange to 2" Female NPT, 80mm (3") ANSI Flange to 1-1/2" Female NPT, 80mm (3") ANSI Flange to 1" Female NPT, 80mm (3") ANSI Flange to 2-1/2" Female NPT, 80mm (3") ANSI Flange to 2" Female NPT |
| AP Stainless Certification | ASME, CE, EN, ISO 14001, ISO 45001, ISO 9001, TS, TUV, UL |
| Color | Silver Metallic |
| Connection | Threaded |
| Features | Bolts and Gasket Included, High Flow |
| Material | Stainless Steel |
| Pressure | 188 PSI, 1mbar/0.03inhg (Full industrial vacuum), 200 PSI |
| Temperature | EPDM -4ยฐF to +248ยฐF |
Related products
-

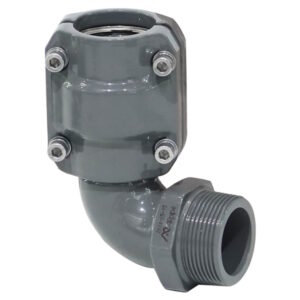

Male Threaded Elbow
This product has multiple variants. The options may be chosen on the product page -

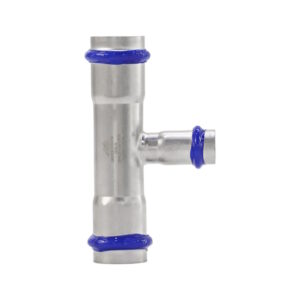

Reducing Tee
